week2

the relational model(数据模型)

1. 关系模型例子：表格形式

ID name dept_name salary
12121 Wu Finance 90000
  • 列 \(\rightarrow\) 属性
  • 行 \(\rightarrow\) 元组

2. 基本结构

  • 关系 \(R\) 的定义
  • \(R=(A_1,A_2,...,A_n)\) is a relation scheme （模式）
  • relations are unordered

3. Attributes

  • domain, the set of allowed values for each attribute
  • atomic, that is indivisible
  • null, a member of every domain (special)

4. Keys

Let K \(\subseteq\) R

  • K is a \(superkey\) when K里的值足以确定R里的任何一个独一无二的元组
    • example : {ID} and {ID name} are both superkeys of instructor
  • K is a \(candidate\space key\) if K is min
    • example: {ID} is a candidate key for instructor
  • one of the candidate keys is selected to be the \(primary\space key\)(主键)
  • \(foreign\space key\) : the attribute A of one relation \(R1\) is the primary key of another relation \(R2\)
  • referential integrity (参照完整性) ：范围比foreign key宽泛

5. An relation scheme database example

structure

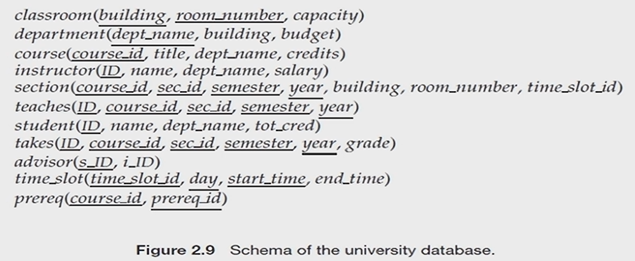

image-20230306152800877

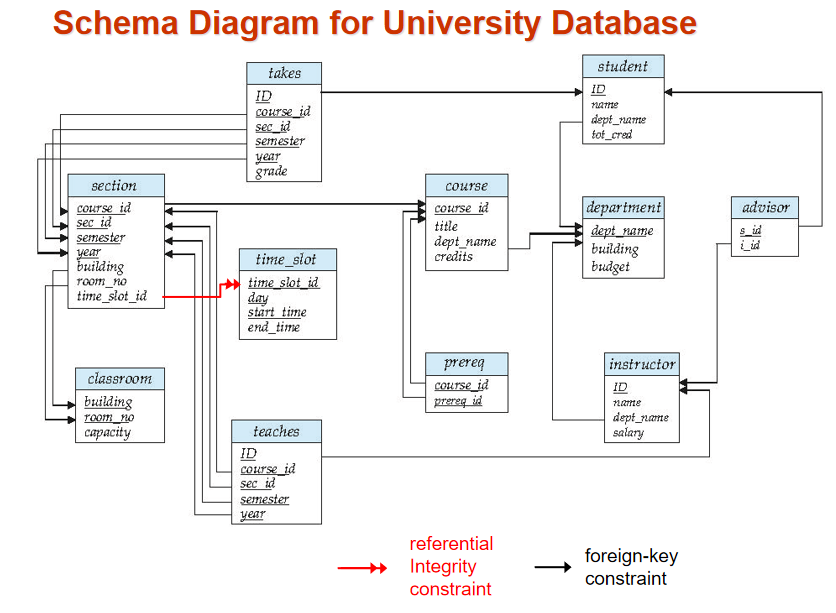

relation diagramimage-20230306154716938

6. relational query language

  • \(relational\space algebra\)
  • tuple relational calculus
  • domain relational calculus

7. relation algebra

7.1 6 basic operations

  • select: \(\sigma\) 横向选择，选择条件满足的元组
  • project: \(\Pi\) 纵向选择（投影）
  • union: \(\cup\) 并起来
  • set difference: \(-\)
  • Cartesian product: \(\times\)
  • rename: \(\rho\) 改表的名字 \(\rho_X(E)\)，把表E的名改为X

7.2 other operations

  • intersect: \(R\cap S=R-(R-S)\)
  • natural join : \(r\bowtie s\) ，公共属性相同的行保留下来
  • assignment: \(\leftarrow\) ？
  • outer join: r ⟕ s , r ⟖ s , r ⟗ s
  • semijion join: r ⟖ \(\theta\) s ,\(\theta\) 为连接条件，只保留R内的属性，S起到一个筛选的作用
  • division operator: \(r\div s\)

7.3 Example Query:

  • Find the names of all instructors in the Physics department, along with the course_id of all courses they have taught

    \[ \Pi_{instructor.name,course\_id}(\sigma_{dept\_name="Physics"}(\sigma_{instructor.ID=teaches.ID}(instructor\times teaches))) \]

  • Find the largest salary in the university

    • Step 1: find instructor salaries that are less than some other instructor salary (i.e. not maximum)

      \[ \Pi_{instructor.salary}(\sigma_{instructor.salary<d.salary}(instructor\times \rho_d(instructor))) \]

    • Step 2: Find the largest salary

      \[ \Pi_{salary}(instructor)-\Pi_{instructor.salary}(\sigma_{instructor.salary<d.salary}(instructor\times \rho_d(instructor))) \]

7.4 Extended Relational-Algebra-Operations

  • Generalized Projection

    • \(\Pi_{ID,name,dept\_name,salary/12}(instructor)\)

  • Aggregate Function

    • avg,min,max,sum,count

    • Example 1:

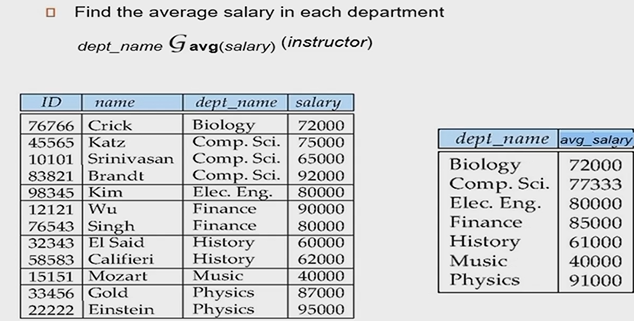

      image-20230306184823983

      Example 2:

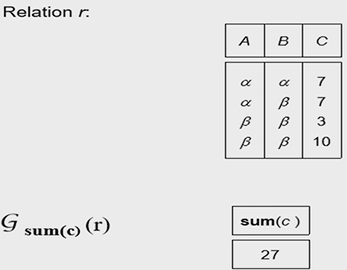

      image-20230306185041513

  • delete

  • insert

  • update

8. Multiset

9. SQL and Relation Algebra

  • select A1,A2,...,An from r1,r2,...,rm where P

    等价于 \(\Pi_{A_1,...,A_n}(\sigma_P(r1\times r2\times ..\times rm))\)

  • select A1,A2,sum(A3) from r1,r2,...,rm where P

    等价于 \(A1,A2,\mathcal{G}_{sum(A3)}(\sigma_P(r1\times r2\times ..\times rm))\)
