AVL Trees

Target

speed up searching, insert&query&delete are all \(O(ln\space n)\) in one step

Tool

binary search trees

Balanced trees

• empty tree: height balanced, \(h\) of \(T\) is \(-1\)
• no empty binary tree \(T\): with \(T_L\) and \(T_R\)
  • \(T_L\) and \(T_R\) are height balanced
  • \(|h_L-h_R|\leqslant1\) where \(h_L\) and \(h_R\) are the heights of \(h_L\) and \(h_R\)
  • hint: the balance factor \(BF(node)=h_L-h_R\), in an AVL tree, \(BF(node)=-1,0,or\space1\)

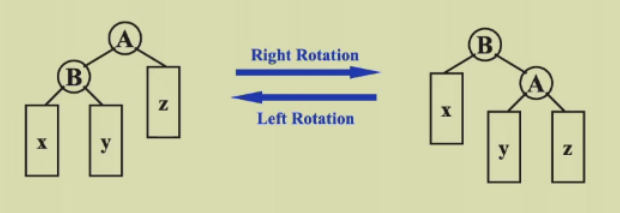

Tree rotation!!!

• time complexity: \(O(1)\)

// right rotation
first  step: T = right subtree of B
second step: right child of B = A
thrid  step: left subtree of A = T

//left rotation
first  step: T = left subtree of A
second step: left child of A = B
thrid  step: right subtree of B = T

AVL trees insertion!!!

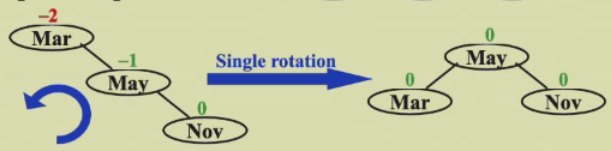

• \(RR\space rotation\) （被旋转的是May（异常节点的儿子），发生的是left rotation，LL rotation同理）

  • the trouble maker Nov is in the right subtree's right subtree of the trouble finder Mar. Hence it's called an RR rotation

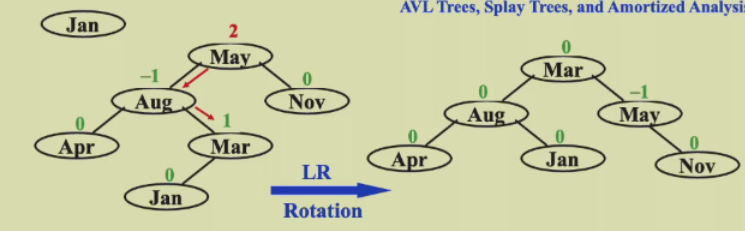

• \(LR\space rotation\) （发生两次旋转，被旋转的都是May（异常节点的孙子），第一次发生left rotation,第二次发生right rotation, RL rotation 同理）

  • the trouble maker Jan is in the left subtree's right subtree of the trouble finder May. Hence it's called an LR rotation



Some analysis

• \(n_h\) : the min num of nodes in a height balanced tree of height h

  \(n_h=n_{h-1}+n_{h-2}+1\)

  • \(n_h=F_{h+2}-1\), \(F_{h+2}\) is Fibonacci number, \(h=O(ln\space n)\)

Splay Trees

Target

any m consecutive tree operations starting from an empty tree take at most \(O(MlogN)\) time

Rotation

when query/find

for any nonroot node \(X\),delete its parent by \(P\) and grandparent by \(G\)

• case 1: \(P\) is the root \(\rightarrow\) rotate \(X\) and \(P\)

• case 2: \(P\) isn't the root

  • zig-zag: the same as \(RL\) and \(LR\)
  • zig-zig:
    • 1st step: rotate \(P\) towards \(G\)
    • 2nd step: rotate \(X\) towards \(P\)

Deletions

step 1: Find \(X\) \(\leftarrow\) \(X\) will be at the root.

step 2: Remove \(X\)

step 3: Find Max (\(T_L\))

step 4: Make \(T_R\) the right child of the root of Max(\(T_L\))

Amortized Analysis

Target

Any M consecutive operations take at most \(O(MlogN)\) time.

• worst-case bound \(\geqslant\) amortized bound \(\geqslant\) average-case bound

Ways

1. Aggregate analysis
   • example: Multi-pop
2. Accounting method ?
3. Potential method
